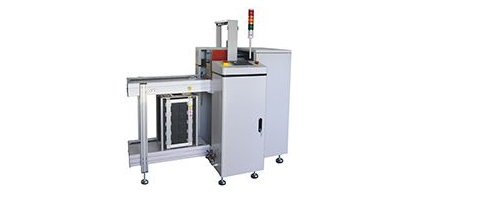

Combination Magazine/Stacked PCB Loader

Contact

Magazine loading or vacuum pickup for stacked PCBs Automatic full magazine load and empty magazine offload Automatic stack height sensing SMEMA compatible SMC pneumatic pusher cylinder pressure regulated Omron PLC Japan Keyence sensor control LCD touch screen control Cast aluminum integrated lifting platform light tower and audible alarm CE compliance. 2 year parts warranty

Application: It can be used to load PCBs onto the production line from either magazines or stacks, simplifying double­sided board assembly. Ideal for double­sided assembly. Load bare boards from stacks or partial assemblies from magazines Technical Specifications: Selectable pitch 10mm up to 40mm Diameter 3mm edge round belt Component clearance: top 80mm bottom 20mm Power: AC220V/110V, 50/60 HZ, 1 phase Air Pressure: 5kgf/cm2 PCB Convey Direction: L­R ( Or R­L) Front rail fixed ( or rear rail fixed) Conveyor height:900+50/­20mm Stack Height: 200mm Conveyor speed: vacuum loading 15s/pc, loading 7s/pc

Model No             Description                            Magazine Size Max            PCB Size

L250X 250mm    Magazine & Vacuum Loader       355x320x563 mm             350x250 mm

L330X 330mm    Magazine& Vacuum Loader        460x400x563 mm             460x330 mm

L390X 390mm    Magazine& Vacuum Loader        535x460x570 mm             535x390 mm

L460X 460mm    Magazine& Vacuum Loader        535x530x570 mm             535x460 mm

** These are only some basic model loader, unloader, conveyor. We have a lot models.
