Product Characteristics

Dimensions (L x W x H): 151 x 19 x 14.5mm

Weight: 30g

Battery Life: All day in typical use, one year in standby

Charging Time: 2.5 hours (typical)

Test Signal Specification

Test Frequency: 100Hz, 1kHz, 10kHz

Test Voltage: 0.5Vrms

Source Impedance: 100Ω

Measurement Range

Resistance: 25mΩ to 10MΩ

Capacitance: 0.3pF to 500uF

Inductance: 100nH to 1H

Best Accuracy

Resistance: 0.5%

Capacitance: 1.0%

Inductance: 1.0%



An Elite LCR Meter for SMD Components

LCR Elite1 is a digital multimeter designed to measure inductance, capacitance and resistance with high accuracy. It is small, light and super-convenient for you to carry everywhere and not be tethered to bulky lab equipment.

The gold-plated precise tips are designed to contact the SMD components easily and reliably with sizes down to 0201. The 4-wire shielded probe improves measurement accuracy and reduces parasitic parameters to a minimum. The highly integrated hardware improves the performance and reduces the size significantly, making the Elite1 an ideal choice for a broad range of applications and missions, including electronics labs, QA inspection, production lines, service center, etc.

Key Features

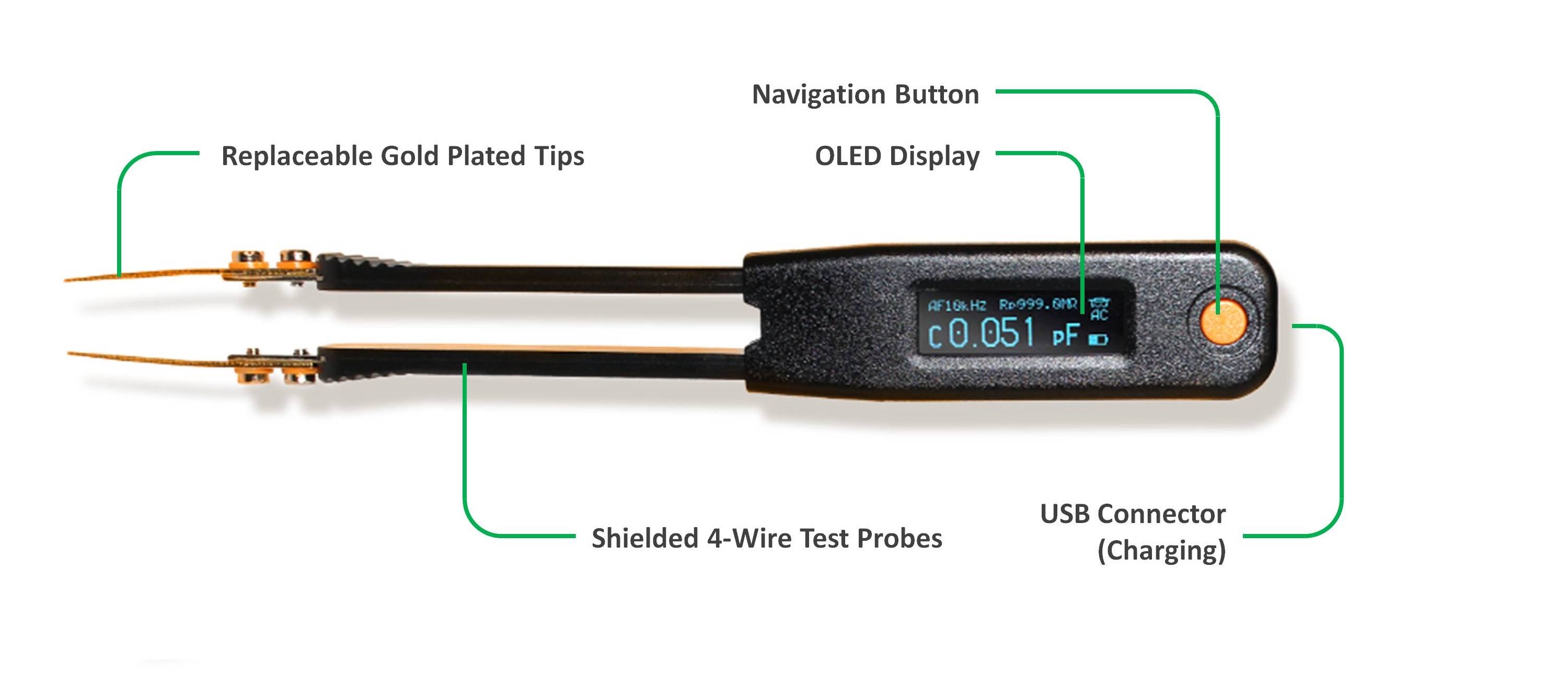

  • Precise gold-plated tips for L, C, R measurement
  • Automatic or manual component identification
  • Automatic or manual test frequency selection
  • Automatic or manual circuit mode
  • One hand operation to pick up SMD components easily
  • Portable design with bright OLED display
  • Built-in rechargeable Lithium-ion polymer battery
  • Standard USB charging via computer or USB power adapter

Automatic Component Identification

LCR Elite1 simplifies measurements by using the automatic component identification function. It automatically identifies L, C, or R and selects proper testing frequency and circuit mode. Alternatively, you can use manual mode to set the desired parameters for measurement.

Detailed component analysis is provided on the OLED display. The primary display shows component type and value. The secondary display shows Rs (series equivalent resistance) or Rp (parallel equivalent resistance). Testing parameters and battery indicator are also displayed.

Easy Operation

LCR Elite1 is much smaller and lighter than traditional LCR meters. It allows for one-handed operation, which makes measurements and reading results effortless.

By clicking the navigation button once or several times, you can select different testing parameters quickly and easily. You can conveniently return to the default mode by pressing and holding down the navigation button for 2 seconds, regardless of which mode it was currently in.

Long Battery Life

LCR Elite1 is powered by an internal, lithium-ion polymer rechargeable battery. It can be charged by a computer or a USB power adapter. The power consumption is optimized to make the battery last a day for typical measurement. The standby time can last up to a year.

What’s in the Box

  • LCR Elite1 Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
