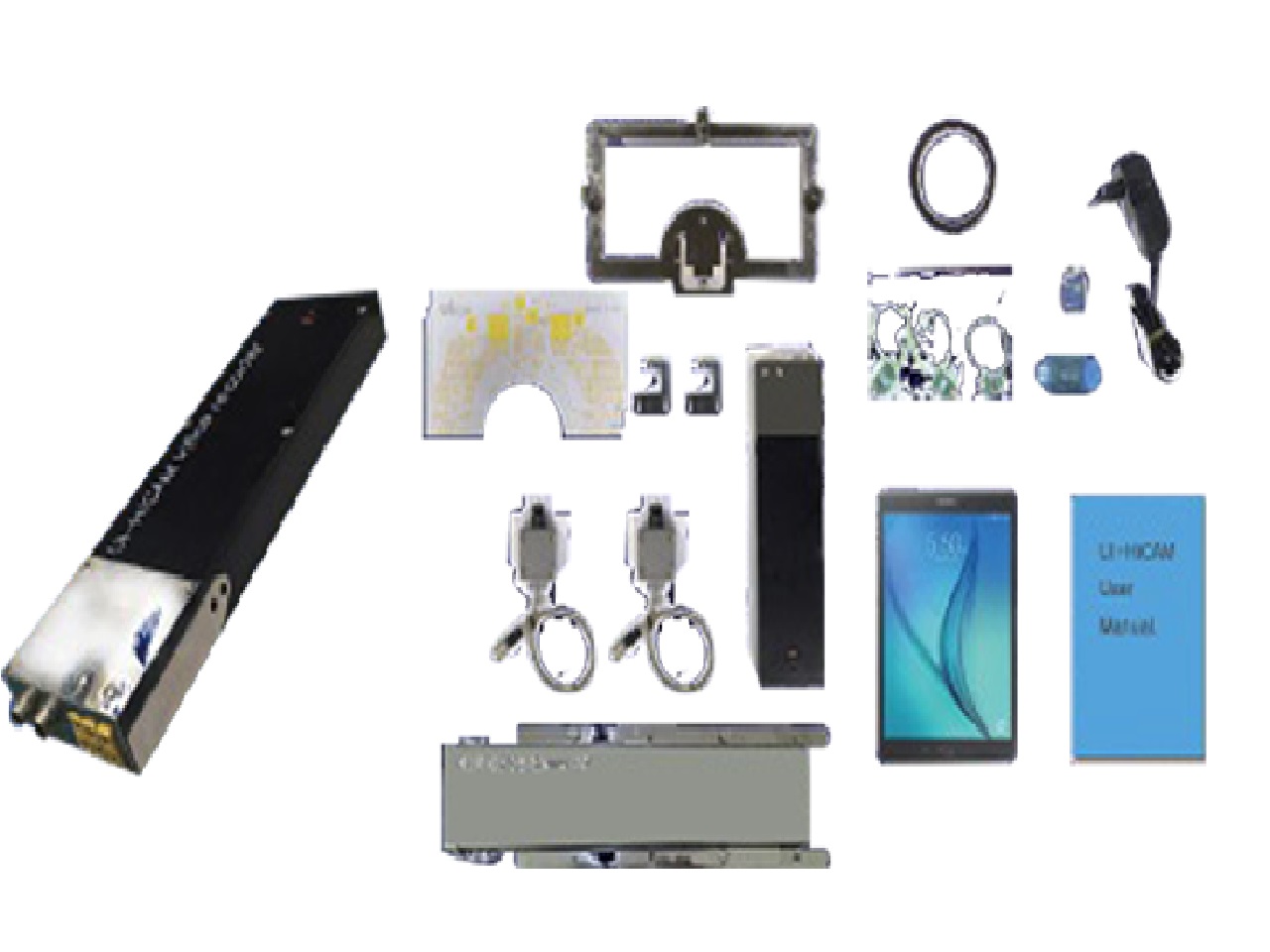

It is equipped with three temperature channels and a vibration sensor, the internal environment of the reflow machine can be photographed, analyzed and integrated.
The camera module has two types of modules: a close-up module that can enlarged the soldering process and a wide-angle shooting module that allows you to shoot
the entire environment of the oven. The close-up method allows to shoot the actual soldering status by using custom made carrier jig to take the actual use
PCB of customers. By using the storage method using the separable memory card, noise that may be occurred during wireless transmission / reception is removed.
Measurement information
| Description | Sensor | Measuring range | Error |
|---|---|---|---|
| Temperature measurement | K-form thermocouple | 0~400℃ | ±2℃ |
| Sampling | 0.3, 0.6, 1.2, 2.4 seconds | ||
| Measuring time | 10 minutes | ||
| Number of times of internal storage |
2 times |
General information
| Description | Contents |
|---|---|
| Battery | Chargeable 12V |
| Use time | Continuous 1hour(room temperature) |
| Use, preservation / temperature |
0~300℃ / 0~40℃ |
| Dimension | 300x73x26(measurement module) / 385x85x35(external case) |
Specification information
| Specification information | Minimum requirements |
|---|---|
| OS | Window 95, 98, ME, 2000, XP, 7, 8 |
| Processor / Memory | Over Pentium 4 / Over 2GB |
| HDD / CD-ROM | Over 200GBMB / Included CD-Rom(for Install) |
| VGA / Connect | 1024x768, over 16bit/RS232C |
| Motion video measurement information |
HD(1280x760) / 1minute unit division storage |
| Vibration measurement information | 2G acceleration of gravity sensor type |
| Motion video storage capacity | Subject to capacity of memory card connected externally |
